What is a Hydraulic excavators

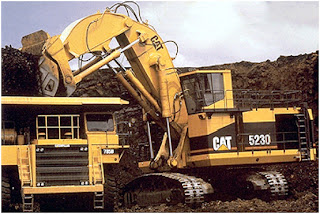

Hydraulic Excavator



Excavators are heavy construction equipment consisting of a boom, bucket and cab on a rotating platform (known as the "house"). The house sits atop an undercarriage with tracks or wheels. All movement and functions of the excavator are accomplished through the use of hydraulic fluid, be it with rams or motors. Their design is a natural progression from the steam shovel.


Usage
Excavators are used in many ways:

  • ·         Digging of trenches, holes, foundations
  • ·         Material handling
  • ·         Brush cutting with hydraulic attachments
  • ·         Forestry work
  • ·         Demolition
  • ·         General grading/landscaping
  • ·         Heavy lift, e.g. lifting and placing of pipes
  • ·         Mining, especially, but not only open-pit mining
  • ·         River dredging
  • ·         Driving piles, in conjunction with a Pile Driver


Configurations
Excavators come in a wide variety of sizes. The smaller ones are called mini or compact excavators. Caterpillar's smallest mini-excavator weighs 3,549 pounds (1,610 kg) and has 19 hp; their largest model weighs 187,360 pounds (84,990 kg) and has 513 hp

Engines in excavators drive hydraulic pumps; there are usually 3 pumps: the two main pumps are for supplying oil at high pressure (up to 5000 psi) for the rams, swing motor, track motors, and accessories, and the third is a lower pressure (700 psi) pump for Pilot Control, this circuit used for the control of the spool valves, this allows for a reduced effort required when operating the controls.



The two main sections of an excavator are the undercarriage and the house. The undercarriage includes the blade (if fitted), tracks, track frame, and final drives, which have a hydraulic motor and gearing providing the drive to the individual tracks, and the house includes the operator cab, counterweight, engine, fuel and hydraulic oil tanks. The house attaches to the undercarriage by way of a center pin, allowing the machine to slew 360° unhindered.

The main boom attaches to the house, and can be one of 3 different configurations:
  • ·         Most are mono booms: these have no movement apart from straight up and down.
  • ·         Some others have a knuckle boom which can also move left and right in line with the machine.
  • ·         The other option is a hinge at the base of the boom allowing it to hydraulically pivot up to 180° independent to the house, however this is generally available only to compact excavators.

Attached to the end of the boom is the stick (or dipper arm). The stick provides the digging force needed to pull the bucket through the ground. The stick length is optional depending whether reach (longer stick) or break-out power (shorter stick) is required.

On the end of the stick is usually a bucket. A wide, large capacity (Mud) bucket with a straight cutting edge is used for cleanup and levelling or where the material to be dug is soft, and teeth are not required. A general purpose (GP) bucket is generally smaller, stronger, and has hardened side cutters and teeth used to break through hard ground and rocks. Buckets have numerous shapes and sizes for various applications. There are also many other attachments which are available to be attached to the excavator for boring, ripping, crushing, cutting, lifting, etc.


 Excavator attachments
In recent years, hydraulic excavator capabilities have expanded far beyond excavation tasks with buckets. With the advent of hydraulic powered attachments such as a breaker, a grapple or an auger, the excavator is frequently used in many applications other than excavation. Many excavators feature a quick coupler for simplified attachment mounting, increasing the machine's utilization on the jobsite. Excavators are usually employed together with loaders and bulldozers. Most wheeled, compact and some medium sized (11 to 18 tonne) excavators have a backfill (or dozer) blade. This is a horizontal bulldozer-like blade attached to the undercarriage and is used for levelling & pushing removed material back into a hole.
